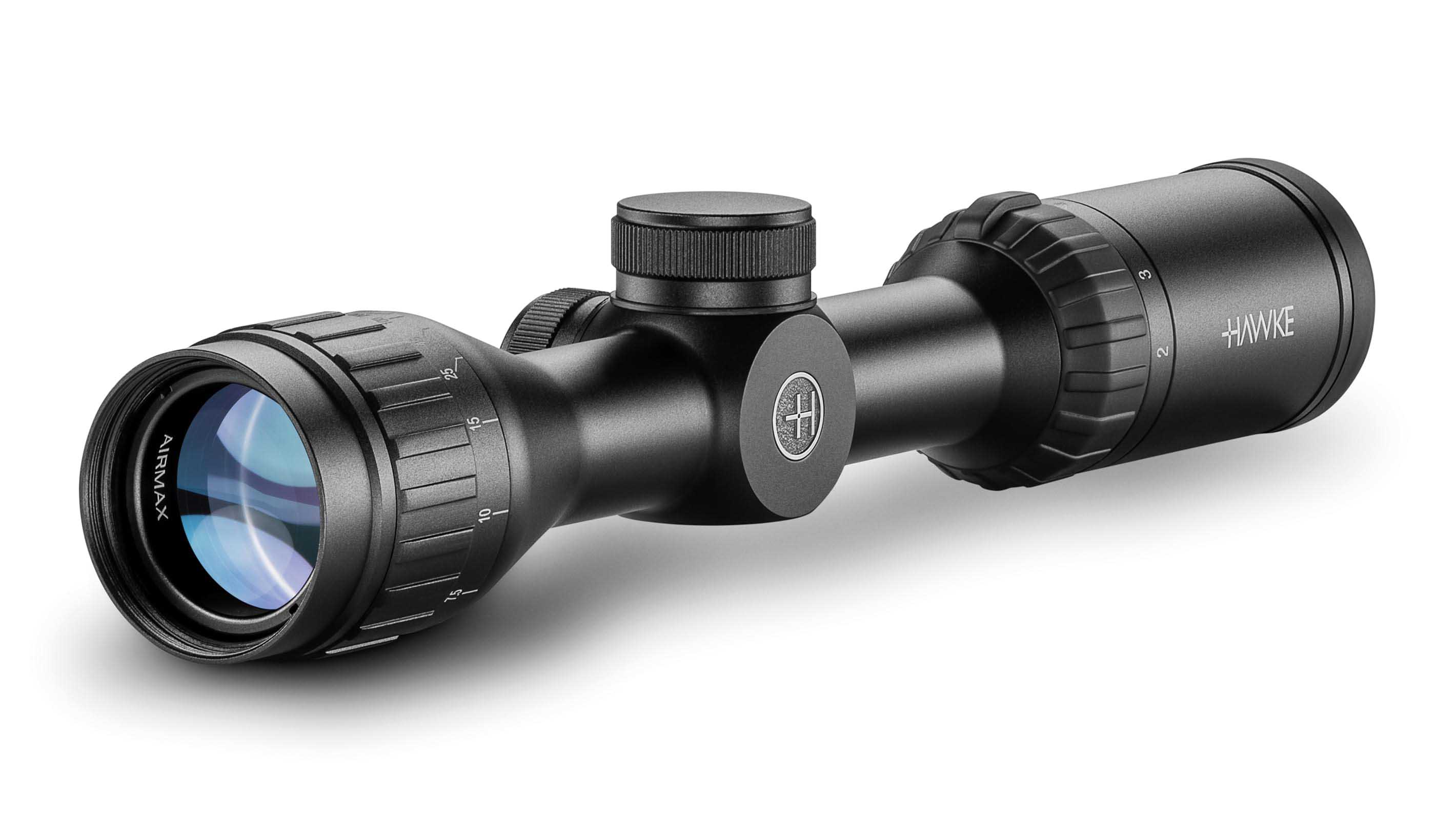

Airmax 2-7x32 AMX

16 layer fully multi-coated optics for exceptional clarity
Wide view optical system ideal for airguns
Glass etched reticle to withstand high recoil
Integrated adjustable objective for parallax adjustment
1 inch mono-tube chassis for superior strength
1/4 MOA low profile no-snag fingertip turrets
Fast focus eyebell and high torque zoom ring
Threaded objective/ocular for optional accessories.

Chassis:

1″ Mono-tube

Optical System:

2-7x

Objective:

32mm

Reticle:

AMX

Illumination:

N/A

Focus/Parallax:

Adjustable Objective - 7m / 7.5yds to Infinity

Field of View: m @100m / ft @100yds

17.5 - 6.3m / 52.5 - 18.9ft

Eye relief:

89mm / 3.5″

Length:

269mm / 10.6″

Weight:

472g / 16.6oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

Material:

Aluminium

Exit Pupil:

16 - 5mm / 0.6 - 0.2″

Ocular Type:

Fast Focus

Lens Coating:

Fully Multi-Coated - 16 Layers

Power Selector Style:

Rubber Coated Posi-Grip

Focal Plane:

Second Focal Plane (SFP)

Warranty:

Hawke Worldwide Warranty

Elevation Increment:

1/4 MOA

Elevation Adjustment Range:

120 MOA

Windage Increment:

1/4 MOA

Windage Adjustment Range:

120 MOA

Turret Caps:

YES

Turret Type:

Low Profile

SUPPLIED WITH
Box
Instruction Manual
Lens Cloth
Lens Covers
