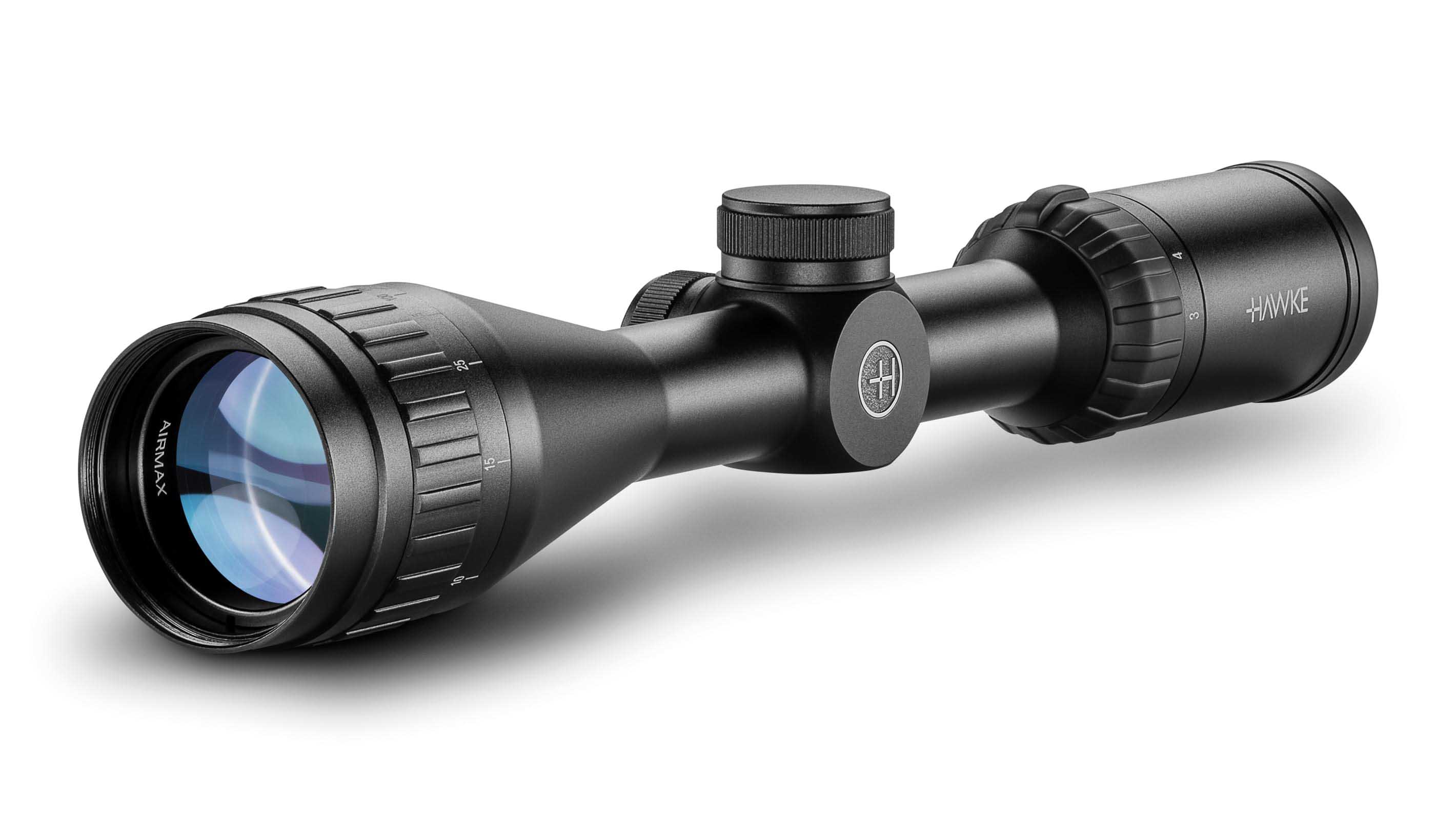

Airmax 3-9x40 AMX

Airmax 3-9x40 AMX


  • 16 layer fully multi-coated optics for exceptional clarity
  • Wide view optical system ideal for airguns
  • Glass etched reticle to withstand high recoil
  • Integrated adjustable objective (AO) for parallax adjustment
  • 1 inch mono-tube chassis for superior strength
  • 1/4 MOA low profile no-snag fingertip turrets
  • Fast focus eyebell and high torque zoom ring
  • Threaded objective/ocular for optional accessories

OVERVIEW


Chassis:
1″ Mono-tube
Optical System:
3-9x
Objective:
40
Reticle:
AMX
Illumination:
N/A
Focus/Parallax:
Adjustable Objective - 9.1m / 10yds to Infinity
Field of View: m @100m / ft @100yds
12.4 - 4.5m / 37.2 - 13.6ft
Eye relief:
89mm / 3.5″
Length:
306mm / 12″
Weight:
519g / 18.3oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

Reticle Information


SPECIFICATION


Material:
Aluminium
Exit Pupil:
13 - 4mm / 0.5 - 0.2″
Ocular Type:
Fast Focus
Lens Coating:
Fully Multi-Coated - 16 Layers
Power Selector Style:
Rubber Coated Posi-Grip
Warranty:
Hawke Worldwide Warranty
Elevation Increment:
1/4 MOA
Elevation Adjustment Range:
80 MOA
Windage Increment:
1/4 MOA
Windage Adjustment Range:
80 MOA
Turret Caps:
YES
Turret Type:
Low Profile

SUPPLIED WITH


  • Elasticated Lens Covers
  • Lens Cloth
