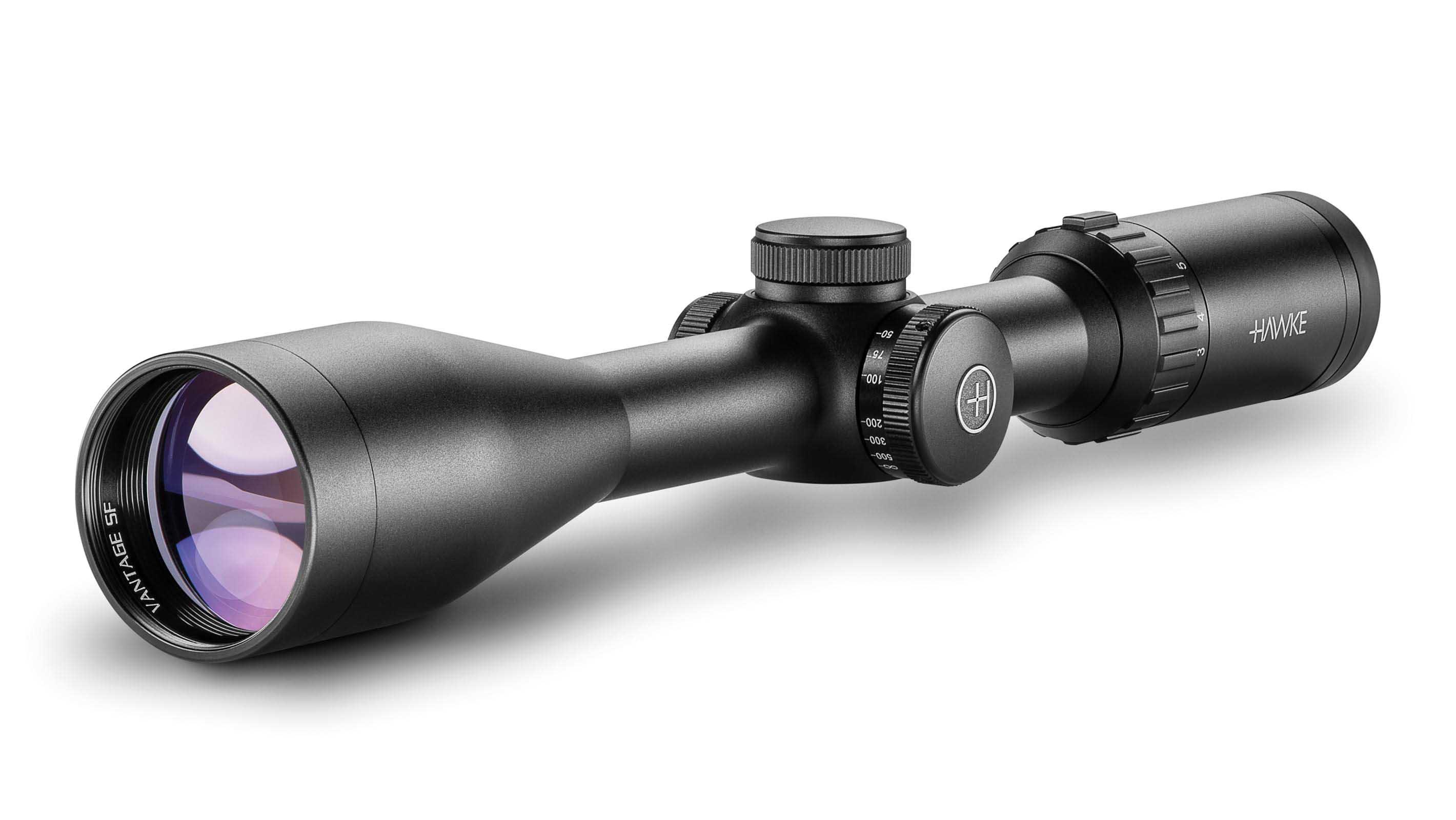

Vantage SF 3-12x44 ½ Mil Dot

11 layer fully multi-coated optics for maximum clarity
Side focus control for parallax adjustment to infinity
1 inch mono-tube chassis for superior strength
1/4 MOA low profile no-snag fingertip turrets
Fast focus eyebell and high torque zoom ring
Threaded objective/ocular for optional accessories

Überblick

Chassis:

1″ Mono-tube

Optical System:

3-12x

Objective:

44mm

Reticle:

Half Mil Dot

Illumination:

N/A

Focus/Parallax:

Side Focus - 9m / 10yds to Infinity

Field of View: m @100m / ft @100yds

10.2 - 2.6m / 30.6 - 7.7ft

Eye relief:

89mm / 3.5″

Length:

337mm / 13.3″

Weight:

491g / 17.3oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

Reticle Information

SPECIFICATION

Material:

Aluminium

Exit Pupil:

15 - 4mm / 0.5 - 0.1″

Ocular Type:

Fast Focus

Lens Coating:

Fully Multi-Coated - 11 Layers

Power Selector Style:

Knurled Posi-Grip

Focal Plane:

Second Focal Plane (SFP)

Warranty:

Hawke Worldwide Warranty

Elevation Increment:

1/4 MOA

Elevation Adjustment Range:

100 MOA

Windage Increment:

1/4 MOA

Windage Adjustment Range:

100 MOA

Turret Caps:

YES

Turret Type:

Low Profile

SUPPLIED WITH

Elasticated Lens Covers
Lens Cloth

DOWNLOADS

Instruction Booklet

PDF 0.9MB
