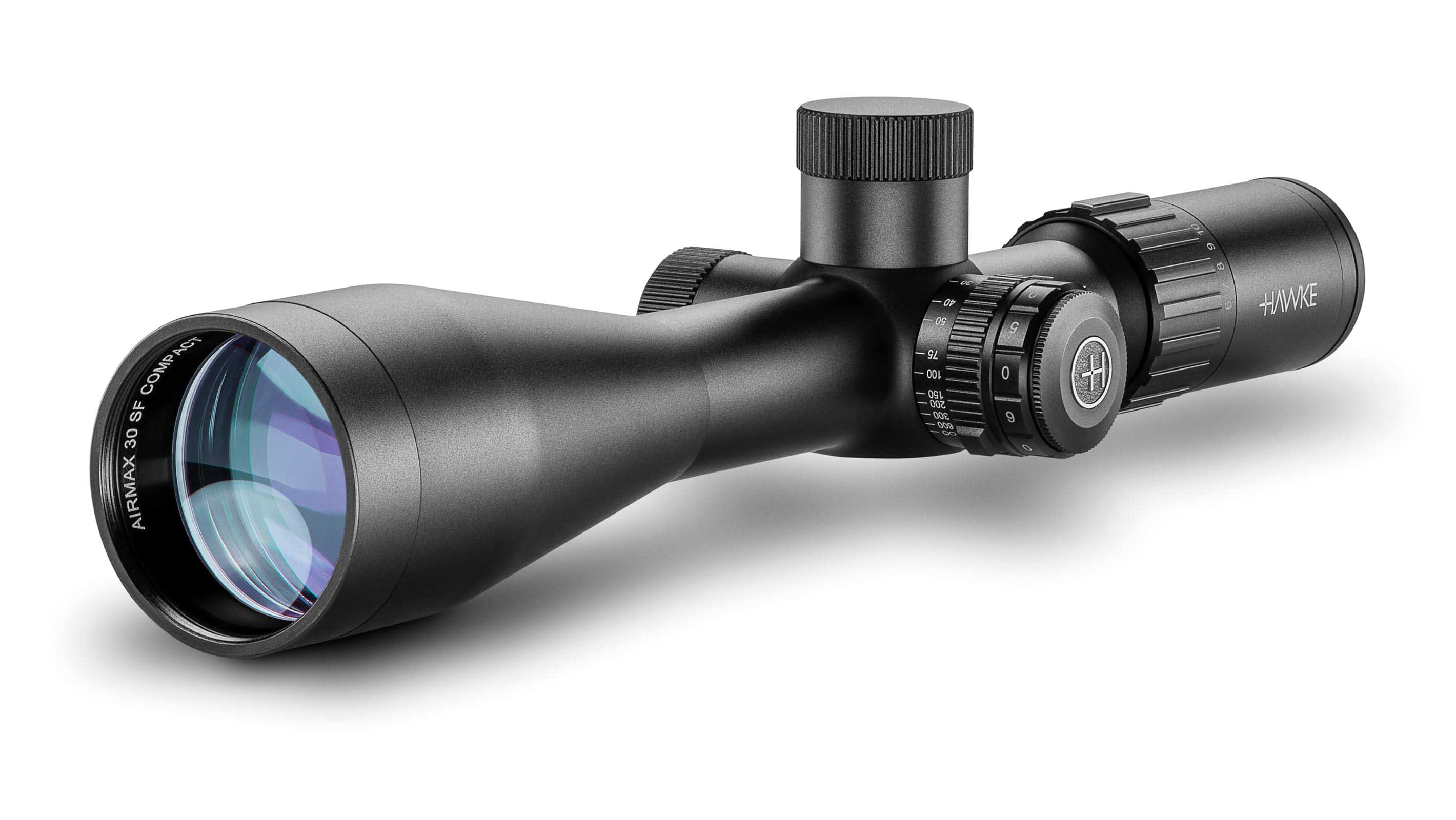

Airmax 30 SF Compact 6-24x50 AMX IR

Model: 13220
Barcode/EAN: 5054492132201

Availability:



No stock, delayed despatch

€489.00
Hawke Logo - Roundal

Airmax 30 SF Compact 6-24x50 AMX IR

BUY NOW
Modell:  13220
Bar Code:  5054492132201

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type:  Riflescope
Product Range:  Airmax 30 WA SF Compact
Objective Lens:  50mm
Reticle:  AMX IR
Parallax:  Side Focus
Magnification:  6 - 24x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  30mm
Illumination:  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds):  21.9 - 5.5
Field of View (m@100m):  7.3 - 1.8
Field of View ():  4.2 - 1
Eye Relief (in):  3
Eye Relief (mm):  76
PX/Focus (yds):  10 - ∞
PX/Focus (m):  9 - ∞
Exit Pupil (mm):  8.3 - 2.1
Exit Pupil (in):  0.33 - 0.08
Turret Type:  Target
Turret Caps:  YES
Click Value:  1/10 MRAD
Elevation Turret Clicks (max):  16 MRAD
Windage Turret Clicks (max):  16 MRAD
Ocular Type:  Fast Focus
Power Selector:  Knurled Posi-Grip
Lens Coating:  Fully Multi-Coated - 16 Layers
Length (in):  13
Length (mm):  329
Weight (oz):  23.6
Weight (g):  670
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 3" Sidewheel
  • CR2032 Battery
