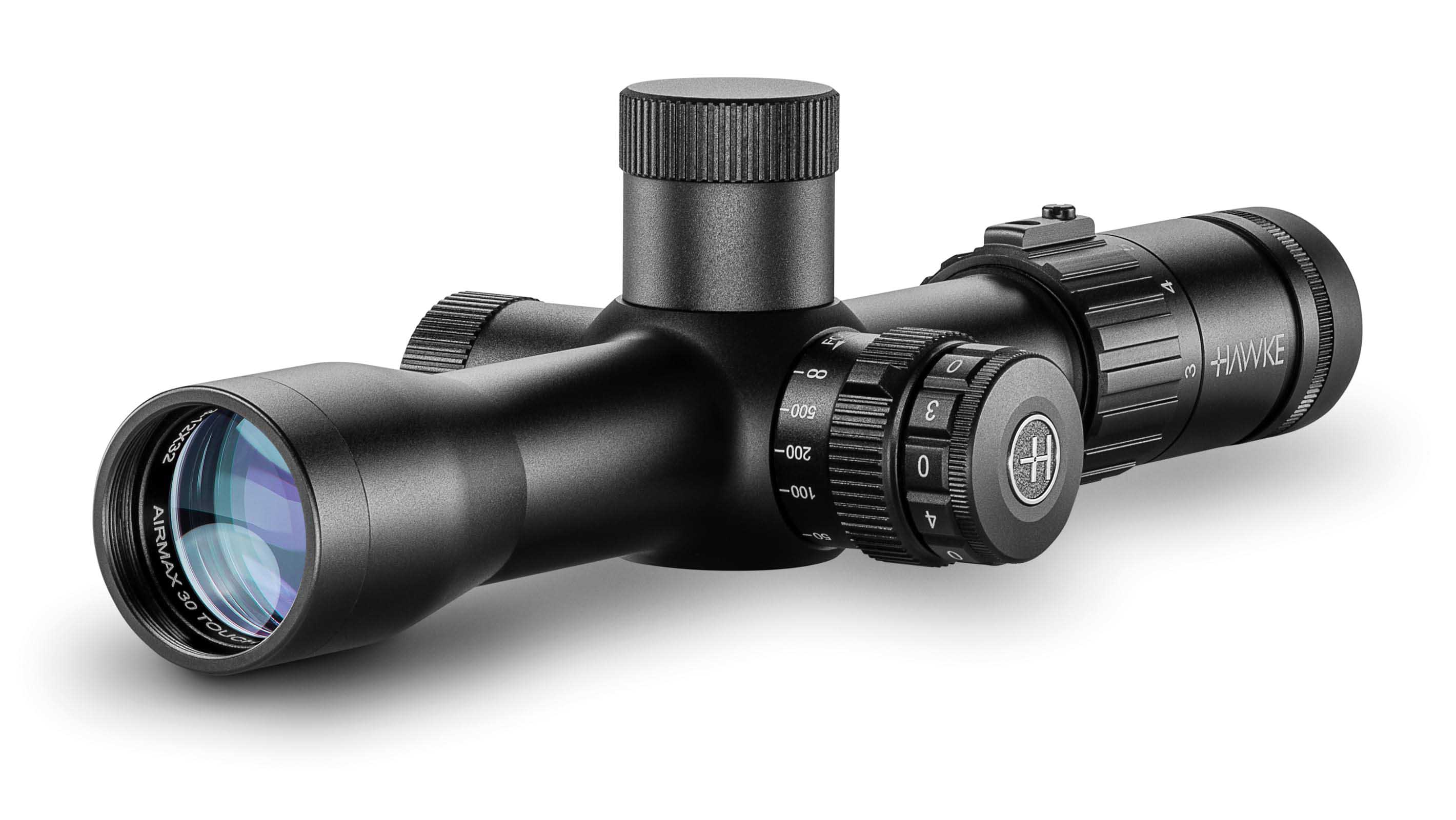

Airmax 30 Touch 3-12x32 AMX IR

Model: 13260
Barcode/EAN: 5054492132607

Availability:



No stock, delayed despatch

€499.00
Hawke Logo - Roundal

Airmax 30 Touch 3-12x32 AMX IR

BUY NOW
Modell:  13260
Bar Code:  5054492132607

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • Zero Eye Relief
  • 30mm Mono-tube chassis
  • Super Wide Angle
  • Side Focus
  • Illumination
  • Zoom ring with index magnification click at 10x
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast Focus Eyebell With Lock Ring
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing

Product Type:  Riflescope
Product Range:  Airmax 30 WA Touch
Objective Lens:  32mm
Reticle:  AMX IR
Parallax:  Side Focus
Magnification:  3 - 12x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  30mm
Illumination:  6 Levels with Off Positions In-between - Red
Field of View (ft@100yds):  63.8 - 18.2
Field of View (m@100m):  21.3 - 6.1
Field of View ():  12.2 - 3.5
Eye Relief (in):  1.2
Eye Relief (mm):  30
PX/Focus (yds):  8 - ∞
PX/Focus (m):  7 - ∞
Exit Pupil (mm):  10.7 - 2.7
Exit Pupil (in):  0.42 - 0.11
Turret Type:  Target
Turret Caps:  YES
Click Value:  1/10 MRAD
Elevation Turret Clicks (max):  75 MRAD
Windage Turret Clicks (max):  75 MRAD
Ocular Type:  Locking Fast Focus
Power Selector:  Knurled Posi-Grip
Lens Coating:  Fully Multi-Coated - 16 Layers
Length (in):  10.5
Length (mm):  266
Weight (oz):  20.2
Weight (g):  572
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Rubber Eyepiece
  • Lens Covers
  • 3" Sidewheel
  • Hex Key
  • CR2032 Battery
