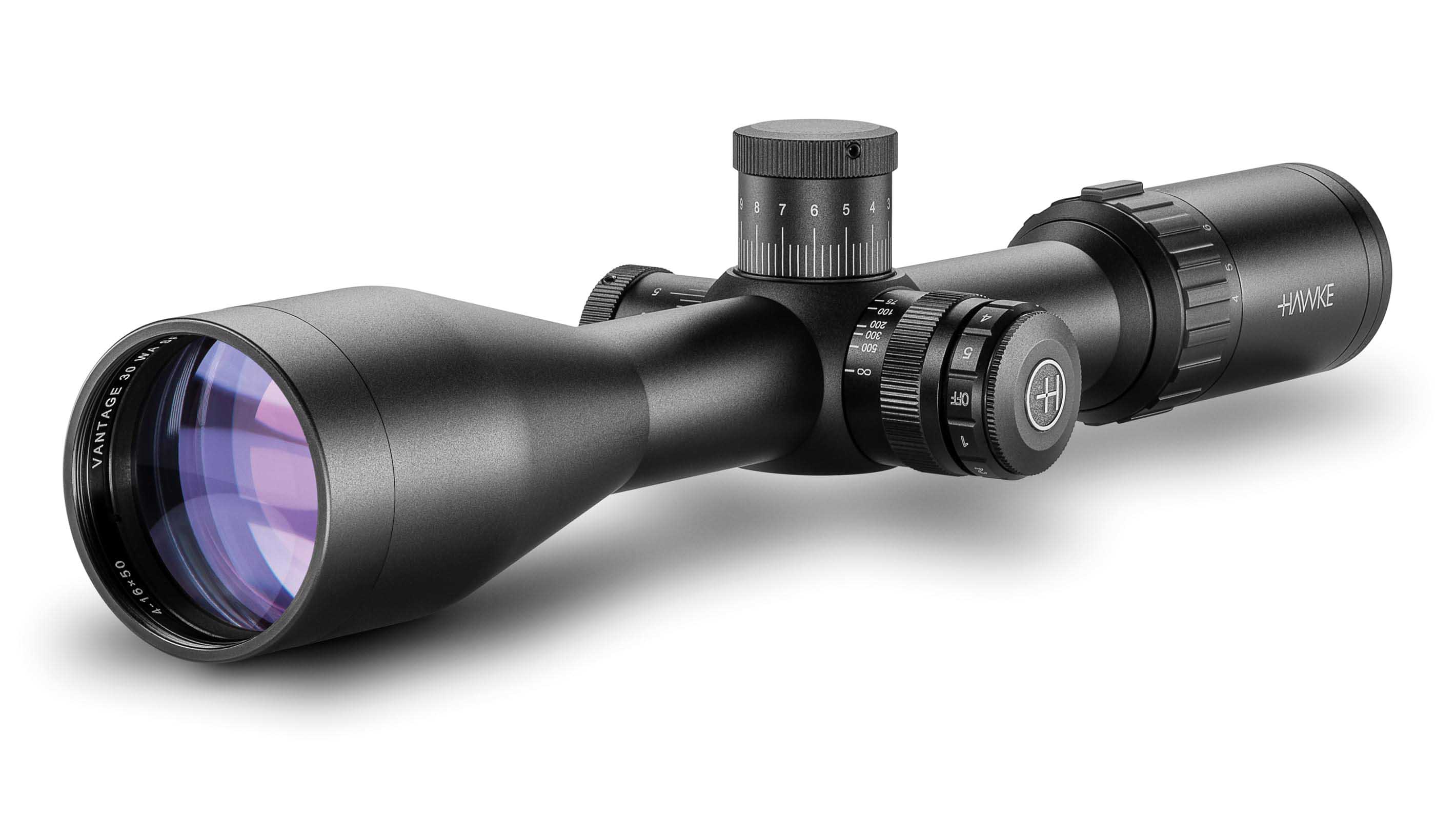

Vantage 30 WA SF IR 4-16x50 Rimfire .17 HMR

Model: 14294
Barcode: 5054492142941
No stock, delayed despatch
€459.00

Vantage 30 WA SF IR 4-16x50 Rimfire .17 HMR

Model:
14294
Barcode:
5054492142941
€459.00

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Exposed Locking Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type
Riflescope
Product Range
Vantage 30 WA SF IR
Objective Lens
50mm
Reticle
Rimfire .17 HMR (16x)
Parallax
Side Focus
Magnification
4 - 16x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
28.8 - 7.8
Field of View (m@100m)
9.6 - 2.6
Field of View (°)
5.5 - 1.5
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
10 - ∞
PX/Focus (m)
9 - ∞
Exit Pupil (mm)
12.5 - 3.1
Exit Pupil (in)
0.49 - 0.12
Turret Type
Exposed
Turret Caps
N/A
Click Value
1/4 MOA
Elevation Turret Clicks (max)
96 MOA
Windage Turret Clicks (max)
96 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length (in)
13.7
Length (mm)
347
Weight (oz)
26.1
Weight (g)
740
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Covers
  • Lens Cloth
  • Hex Key
  • CR2032 Battery
