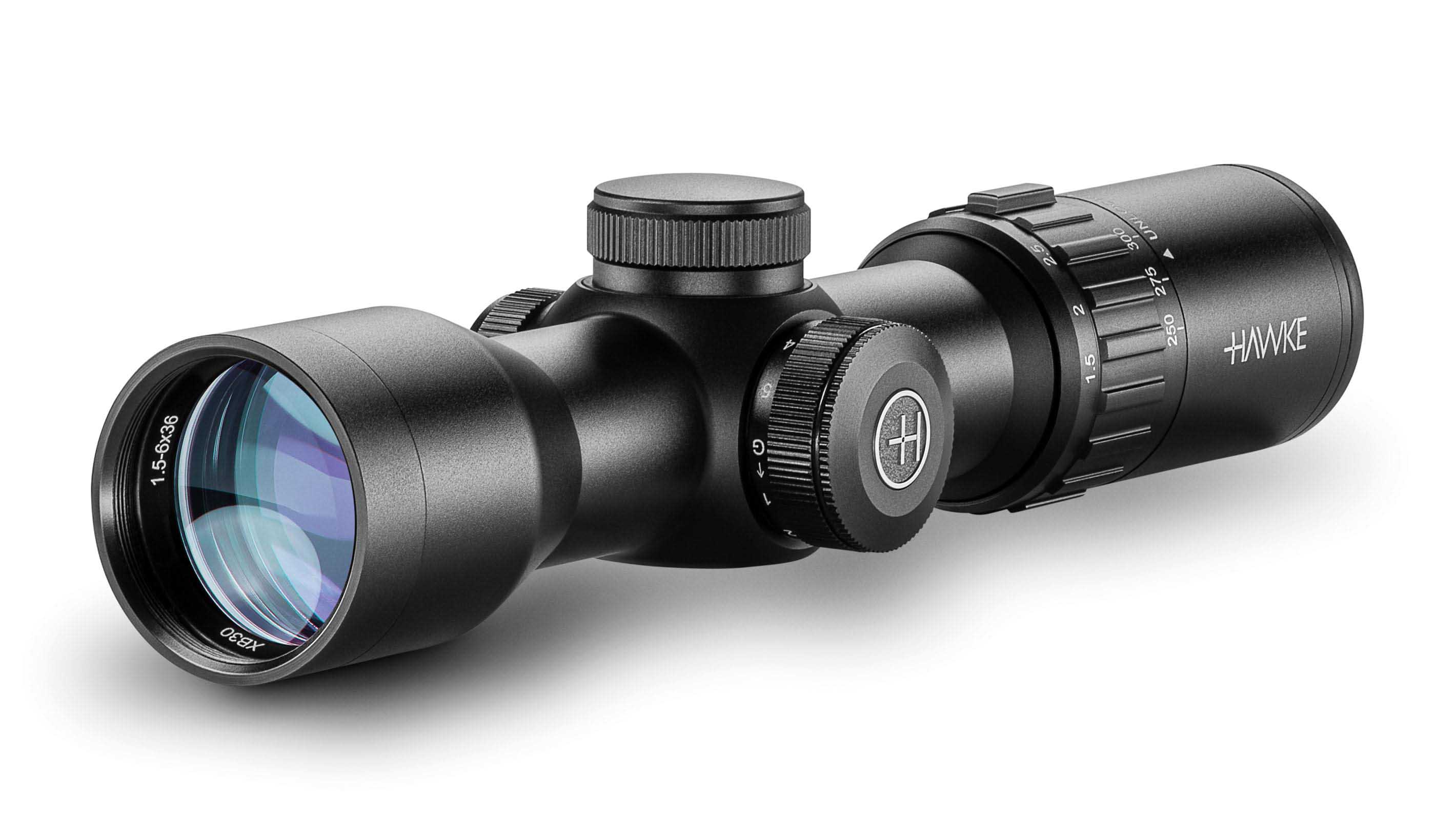

XB30 Compact 1.5-6x36 SR

Model: 12226
Barcode/EAN: 5054492122264

Availability:



No stock, delayed despatch

€329.00
Hawke Logo - Roundal

XB30 Compact 1.5-6x36 SR

BUY NOW
Modell:  12226
Bar Code:  5054492122264
Calibrated For 250fps - 450fps

We didn't invent crossbow scopes... We perfected them.

Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

XB30 Compacts feature a Wide Angle optical system designed to give users the maximum view possible, a locking speed adjuster ring (patent pending) ensures the FPS setting is not changed once zeroed. XB30 Compacts feature a multi-line reticle with aim points out to 100 yards incorporating windage bars.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Patented locking speed adjuster ring
  • Illumination
  • 1⁄2 MOA low-profile fingertip turrets
  • Fixed parallax at 46 metres
  • 14 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Suitable speeds 250fps - 450fps

Nitrogen purged. Shockproof. Waterproof. Fog proof.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type:  Crossbow Scope
Product Range:  XB30 Compact
Objective Lens:  36mm
Reticle:  XB30 Compact SR
Parallax:  Fixed
Magnification:  1.5 - 6x
Optical System:  System H2
Focal Plane:  SFP (Second Focal Plane)
Scope Tube:  30mm
Illumination:  5 Levels - Red/Green
Field of View (ft@100yds):  87.9 - 21.9
Field of View (m@100m):  29.3 - 7.3
Field of View ():  16.7 - 4.2
Eye Relief (in):  3
Eye Relief (mm):  76
PX/Focus (yds):  50
PX/Focus (m):  46
Exit Pupil (mm):  24 - 6
Exit Pupil (in):  0.94 - 0.24
Turret Type:  Capped
Turret Caps:  YES
Click Value:  1/2 MOA
Elevation Turret Clicks (max):  180 MOA
Windage Turret Clicks (max):  180 MOA
Ocular Type:  Fast Focus
Power Selector:  Locking Speed Adjuster
Lens Coating:  Fully Multi-Coated
Length (in):  9.3
Length (mm):  236
Weight (oz):  15.1
Weight (g):  429
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Flip-Up Lens Covers
  • CR2032 Battery
